+69- Sale Price: $221,960
- MSRP: $294,203
- Save: $72,243
-
Sleeps 4
-
3 Slides
-
Master Bed SlideWasher/Dryer Hookup
-
39ft Long
-
22,850 lbs
-
RIMINI

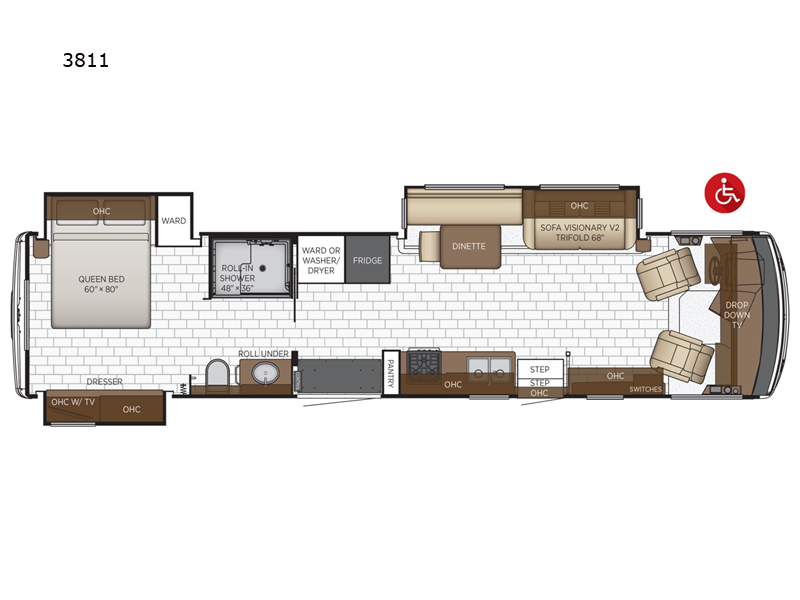

3811 Floorplan
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 38 ft 11 in | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 10 in | Int Height | 6 ft 8 in |
| Interior Color | RIMINI | Exterior Color | WH/BK |
| Hitch Weight | 5000 lbs | GVWR | 26000 lbs |
| Dry Weight | 22850 lbs | Cargo Capacity | 3150 lbs |
| Fresh Water Capacity | 75 gals | Grey Water Capacity | 60 gals |
| Black Water Capacity | 40 gals | Furnace BTU | 42000 btu |
| Fuel Type | Gas | Engine | 7.3L V8 |
| Chassis | Ford F-53 | Horsepower | 350 hp |
| Fuel Capacity | 80 gals | Wheelbase | 254 in |
| Available Beds | Queen | Torque | 468 ft-lb |
| Refrigerator Type | Norcold | Refrigerator Size | 10 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 3 |
| Shower Size | 48" x 36" | Number of Awnings | 1 |
| Axle Weight Front | 9000 lbs | Axle Weight Rear | 17500 lbs |
| LP Tank Capacity | 25 gals | Water Heater Capacity | 6 gal |
| Water Heater Type | Gas/Electric | AC BTU | 27000 btu |
| TV Info | LR Samsung LED TV, BR Samsung LED TV | Awning Info | Carefree Travel'r Power Side Awning w/Strip Lighting |
| Washer/Dryer Available | Yes | Gross Combined Weight | 30000 lbs |
| Shower Type | Shower w/Seat | Electrical Service | 50 amp |
| VIN | 1F66F5DN2P0A03197 |
Description
Newmar Bay Star Class A gas motorhome 3811 highlights:
- Wheelchair Accessible
- Roll-In Shower
- Convection Microwave Below Cooktop
- Extra-Wide Aisleways
- Queen Bed Slide Out
- 10 Cu. Ft. Norcold Refrigerator
This wheelchair accessible motorhome will open your possibilities to see our great country in style. There is a standard BraunAbility electric lift for easy access through the large door, and you will appreciate the fact that switches, drawers, and countertops have been lowered for convenience. This model includes a visionary V2 tri-fold sofa and a booth dinette that has space for a wheelchair on the other side. Staying fresh each day is made easier with the roll-in shower and the roll-under sink, and the rear master bedroom is sure to make you feel right at home with its queen bed, dresser, and Samsung LED TV.
Each Bay Star Class A gas motorhome by Newmar delivers a smooth ride thanks to the standard electronic stability control, along with the 7.3-liter V8 engine with 350 HP and 468 lb./ft. of torque and heavy duty sway bars. The exterior is sure to turn heads with its full-paint Masterpiece Finish, and you'll have three interior decor choices and three wood choices to truly make the coach your own. Each model includes newly styled Williamsburg furniture, luxurious vinyl tile flooring, polished solid surface countertops in the kitchen, plus many more comforts. Head outside to find lit basement storage, a 5.5kW Onan generator with remote switch, and smart level hydraulic leveling jacks with a Bluetooth compatible touch pad for set up easy as 1-2-3! You can further customize your coach with the many options that are offered, such as the optional exterior entertainment center!
- 110 VOLT HEAT PADS FOR HOLDING TANKS
- ARTIC B MAPL
- BED BASE POWER ADJ HGT W/FREESTYLE GLIDEAWAY BED MECH
- AIR MATTRESS & WINDOW
- BOSE SOLO 5 SOUND BAR SOUND SYSTEM
- EXTERIOR ENT CENTER IN SIDEWALL W/SAMSUNG 32" LED TV
- AM/FM RADIO/SPEAKERS
- PREP FOR 2 PIECE WASHER/DRYER
- REAR LADDER
- REFRIGERATOR WHIRLPOOL 11 CF
- INVERTER 2000W PURE SINE W/CPAP PREP
- 6-6V BATTERIES
- WATER FILTER
- FOR ENTIRE UNIT
- WATER HEATER TRUMA COMFORT PLUS CONTINUOUS FLOW
- WIFI RANGER DENALI/SPRUCE LTE
Features
Standard Features (2024)
Exterior
- Full-Paint Masterpiece with Clearcoat Finish
- Diamond Shield Protection on Front Cap
- Automatic Step for Entrance Door
- Convex Exterior Mirrors with Defrost & Remote Control
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Undercoating
- Mud Flaps
- Smart Level Hydraulic Leveling Jacks with Bluetooth Compatible Touch Pad
Optional
- Rear Ladder
- Flag Pole Bracket
Construction
- One Piece Molded Fiberglass Roof
- Gelcoated Fiberglass Exterior Sidewalls, Front & Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, on 16" Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
- Polar Pak R19 Batten Insulation in Roof
- Automatic Mechanical Lock Arms on Slide out Rooms-Scissor Style
- Entrance Door Power Opening for Wheel Chair Lift on 3811
Optional
- Egress Door with Ladder System
- Power Entrance Step Well Cover on 3811
Chassis
- Ford® F-53 Chassis with 7.3Ltr V-8 Engine, 24,000 lb. on 30'-32’ Floor Plan
- Ford® F-53 Chassis with 7.3Ltr V-8 Engine, 26,000 lb. on 34’-38’ Floor Plan
- Aluminum Wheels
- Cruise Control
- Tilt Steering Wheel
- Anti-Lock Braking System
- Electronic Stability Control
- Auto Emergency Break, Distance Alert, Post Impact Braking and Lane Departure Warning
- Driver Alert System and Message Center
- Forward Collison Mitigation System, Adaptive Cruise Control, Auto High Beams and Passive Entry
Mechanical and Electrical
- One Piece Tinted Windshield
- Frameless Double Pane Tinted Safety-Glass Windows
- Fan-Tastic Vent with Rain Sensor in Kitchen and Bathroom
- Skylight Above Shower
- Carefree Travel'r Power Awning with Alumaguard and Strip Lighting
- Rear Window in Bedroom
- Slide Out Covers
Optional
- Screen Door Over Wheelchair Lift Area on 3811
Air Conditioning and Heating Features
- Two 13.5 Penguin Heat Pump A/C, 5.5 Onan Generator, 50 Amp Electrical Service with Energy Management System
- Dash Heater and Air Conditioner
- Propane Gas Furnace with Ducted Heat
- Defrost Fans Built into Front Overhead
Optional
- Auxiliary Heater in Bedroom
Electrical
- 5.5 kW Onan® Generator with Remote Switch and Automatic Changeover
- Four 12 Volt House Batteries
- Battery Disconnect Switch for House Battery
- 12 Volt Auxiliary Receptacle on Dashboard
- 60 Amp Converter
- Daytime Running Lights
- Emergency Engine Start Switch
- LED Ceiling Lights
- LED Strip Lighting
- Lights in Exterior Storage Compartment
- Lights in Wardrobe
- Manually Operated Hold-To-Run Slideout Switch
- Cable TV Connection
- USB Outlet at Dash for Driver Use
- USB Charger at Passenger Seat Area
- Drain Lift Pump with 1200 Watt Inverter*
- Dash Radio, Cameras and Monitors to Power Up from both House Batteries & Ignition
- Multiplex Lighting Control System
- Multiplex Monitor System 10.1 in Center of Coach with Interior Lighting & HVAC Controls
- Two Wireless Phone Chargers in Cockpit
- Power Rewind Reel with 33’ Cord on 3811 Only
- Solar Panel 10 watt to Charge Chassis Battery
Optional
- 1200 Watt Inverter Ran to TV’s*
- 2000 Watt Pure Sine with CPAP Prep, Six 6-Volt Batteries
- Solar Prep with Six Gauge Wire from Roof to First Storage Compartment
Plumbing
- Demand Water System
- Sewage Holding Tank Rinse
- Water Heater Bypass System
- Dometic® 310 China Bowl Stool
- ABS Shower Surround with Shower Door
- Systems Monitor Panel
- Exterior Shower Located on Off Door Side
Optional
- Water Filter for Entire Unit
Cabinets and Furniture
- Calypso Glazed Maple Mitered Designer Cabinet Doors-Matte Finish
- 6-Way Power for Driver Seat
- Manual Footrest on Passenger Seat
- Concealed Hinges on Cabinet Doors
- Drawers with Full-Extension Guides
- Drawers Underneath Booth Dinette Seats
- Pullout Pantry Shelves
- Polished Solid Surface Countertop in Kitchen with Stainless Steel Sink & Sink Covers
- Solid Surface Countertops in Bathroom and Bedroom
- Williamsburg Sleeper Booth Dinette
- Passenger Seat Tablet Holder
- Lifts on Bed Top
- Plus Pillow Top Mattress
- Soft Close Cabinet Doors
- Molded Silverware Divider Tray
- Bed Base Lowered with Power Incline Head of Bed & Sleep Number Deluxe Mattress on 3811
Optional
- Amaretto Glazed Maple Mitered Flat Designer Cabinets-Matte Finish
- Arctic “B” Glazed Maple Mitered Flat Designer Cabinets-Matte Finish
- Drop Down Bunk Bed Over Driver/Passenger Seats, Extends to Windshield with Front Overhead Cabinet & Bunk Ladder
- Drop Down Bunk Bed Over Driver and Passenger Seats, Extends to Windshield with Bunk Ladder and Ctl and Fireplace with TV
- Folding Cockpit Table
- Dinette Combo Desk with Buffet Table, Two Fixed/Two Folding Chairs
- Dinette Combo Desk with Free Standing Hidden Leaf Table, Two Fixed and Two Folding Chairs
- Euro Booth Dinette with One Table Leaf
- Sofa Incliner 74” Non-Sleeper
- Theater Seating 74” (Manual) with Reading Lights
- Lowered (Fixed) Bed Base with Freestyle Glideaway Adj. Bed Mechanism w/Air Mattress and Window on 3811
- Power Adjustable Height Bed Base with Free Style Glideaway Bed Mechanism with Air Mattress and Window on 3811
- Bed Base Full Height on 3811
Appliances
- Convection Microwave 30” Stainless Steel with Three Burner Cooktop and Air Fryer Feature
- Convection Microwave Below Cooktop on BSCA 3811
- Norcold® 10 Cf. Refrigerator
- 6 gal. Gas/Electric Water Heater with Electronic Ignition
- Samsung® LED TV in Living and Bedroom Areas (TV sizes vary per floor plan)
Optional
- Norcold 15 Cf. 3-Door Refrigerator with Icemaker
- 110 Volt Heat Pads for Holding Tanks
- 30” Convection Stainless Steel Microwave with Aire Fryer Feature in Kitchen Overhead with a Drawer Below Cooktop on 3811 Only
- Prep for Two Piece Washer/Dryer
- Splendide Two Piece Stacked Washer/Dryer
- Truma Comfort Plus Continuous Hot Water Heater
- Whirlpool® 11Cf. Refrigerator with Ice Maker, Inverter 2000W Pure Sine with CPAP Prep, & Six 6-Volt Batteries
- Whirlpool® 11Cf. Refrigerator, Inverter 2000W Pure Sine with CPAP Prep, & Six 6-Volt Batteries
Interior
- Padded Vinyl Ceiling Panels
- Decorative Wall Art
- Mini Blinds in Kitchen and Bathroom Windows
- Vinyl Floor in Kitchen, Living Area and Bathroom
- Carpeting on Slide Out Floors
- Interior Assist Handle at Main Entrance Door
- Non-Quilted Bedspread and Accent Pillow
- Inlaid Six-panel Design Interior Passenger Doors
- Auto Motion Manual Double Roller Shades on Windows Behind Driver/Passenger Area
- Auto Motion Power Shade at Windshield and Manual Shades at Driver and Passenger Side Windows
- Dash Panel Color Coordinated ABS
- Integrated Window Blind System on Entry Door
- Shoe Storage Located in Entrance Door Step Compartment
- Wastebasket in Kitchen Base Under Sink
Optional
- Vinyl Plank Floor in Place of Vinyl Tile
Entertainment
- Axxera Dash Radio with Apple CarPlay & Sirius XM Ready, 10” Single Monitor
- Dash Radio with Harman/JBL 180 Watt Sound System
- High Definition Component Wiring
- Rearview Colored Monitor System with Audio
- Side View Cameras Displayed onto Rear View Monitor Screen
- Satellite Dish Prep on Roof
- Winegard Digital Crank Up TV Antenna
- 10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector
- TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
Optional
- Samsung® 43” LED TV on Televator with Fireplace in Place of Front Overhead TV on 3811 Only
- Bose® Soundbar Sound System
- Exterior Entertainment Center in Storage Compartment with Samsung® 32” LED TV and AM/FM Radio
- Samsung® 32” LED TV in Front Overhead*
- WiFi Ranger Denali/Spruce LTE
- WiFi System Everest with Aspen Interior Router
- Winegard Automatic Dome Satellite Dish-for DISH Std/HD, DIRECTV Std. and Bell Canada
- Winegard Automatic Open Face Satellite Dish-for DISH HD and Bell HD TV
- Winegard Automatic Open Face SWM Satellite Dish-for DIRECTV Std/HD
- Winegard In-Motion Dome Satellite Dish- for DISH Std/HD, DIRECTV Std/HD and DIRECTV Std, and Bell Canada
- Winegard Rayzar Automatic Digital TV Antenna
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
